Technical Data

Whole vehicle

length (mm) 2355
Width (mm) 960
Height (mm) 1395
Wheel base (mm) 1565
Loading capacity (kg) 217
Gross mass (kg) 237
Minimum ground clearance (mm) 205
Gasoline tank volume (L) 22
Seat height (mm) 845

Suspension system

Frame system 铝合金双翼梁车架
Tire structure Semi-slick tires
Front rim size MT:2.15×21
Rear rim size MT:4.25×18
Front tire specification 90/90-R21
Rear tire specification 150/70-R18
Front brake specification Disc brake
Rear brake specification Disc brake

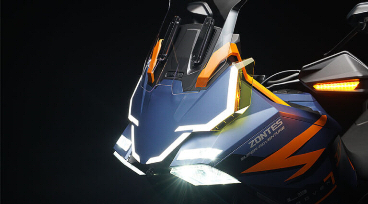

Headlamp/tail light/steering lamp LED
Brake system Dual-Channel ABS System

Power system

The body Aluminum alloy
Cylinder number triple-cylinder
Camshaft system Double-top camshaft(DOHC)
Bore X Stoke (mm) 70 x 60.6
Cooling system Water cooling
Fuel 95 and above
Compression ratio 13 : 1
Displacement(ml) 699
Fuel supply method Intelligent electrical fuel injection
Electrical fuel injection system 马瑞利
Throttle configuration ETC
Ignition system Electronic ignition
Transmission system Oil seal chain
Idling speed (r/min) 1350±100
Maximum power (kW/rpm) 71.5/10000
Maximum torque (N.m/rpm) 76/7500
Transmission 常啮式六段变速
Gear International gears
Clutch Wet multi-disk type
Economical consumption of fuel (L/km) 5/100
